Indirect lightning solutions and LITOL lightning arresters for electrical panels (LTP series)

Instantly Responds to lightning-induced electrical surges to protect all types of equipment.

The LITOL (LTP) line surge protector has been developed by Mitsubishi Materials to protect all types of equipment from lighting-induced electrical surges (lightning damage). It achieves superior responsivity and a maximum discharge current of 20 kA. It can also be installed easily on the DIN rails of control boards and distribution boards.

ElectronicsConstruction MaterialsIndustrial Equipment, Smelting Technology Products, and Auxiliary MaterialsOur Focus Products

Features

  • The equipment between lines and between a line and earth can be protected using a single unit.
  • Resistant to repeated electrical surges and has a long usage life.
  • It is very easy to handle and install (DIN rails are supported)
  • Rated voltages AC 125 V, AC 250 V, and AC 400 V are supported
  • Max. discharge current: 20 kA
  • Also protects against switching surges and back-flow lightning surges

Applications

  • Distribution boards in plants
  • Panel boards
  • Distribution boards for large-scale buildings (hospitals, schools, and collective housing)
  • Gas stations
  • Industrial refrigerators

Product Specifications/Summary

LITOL (LTP series)
Model Specification
LTP-125RF
  • Max. continuous operating voltage Uc : AC 150 V (single-phase three-wire)
  • Nominal discharge current In : 10kA（8/20μs）
  • Max. discharge current Imax : 20kA（8//20μs）
  • Voltage protection improvement*1 : Between lines　　　　 1.2kV
    Between a line and earth　1.5kV
  • Function display*2　　　　　 : On
LTP-250ORF
  • Max. continuous operating voltage Uc : AC250V(three-phase three-wire)
  • Nominal discharge current In : 10kA （8/20μs）
  • Max. discharge current Imax : 20kA（8/20μs）
  • Voltage protection improvement*1 : Between lines　　　　 1.5kV
    Between a line and earth　1.5kV
  • Function display*2　　　　　 : On
LTP-400RF
  • Max. continuous operating voltage Uc　 : AC510V(single-phase three-wire)
  • Nominal discharge current In　　　 : 10kA（820μs）
  • Max. discharge current Imax　 : 20kA（8/20μs）
  • Voltage protection improvement*1 : Between lines　　　　 2.5kV
    Between a line and earth　2.5kV
  • Function display*2　　　　　：On
  1. *1When the nominal discharge current In (8/20 μs) is applied
  2. *2The function display lamp is turned on (Replace the lamp if it is turned off while energized).

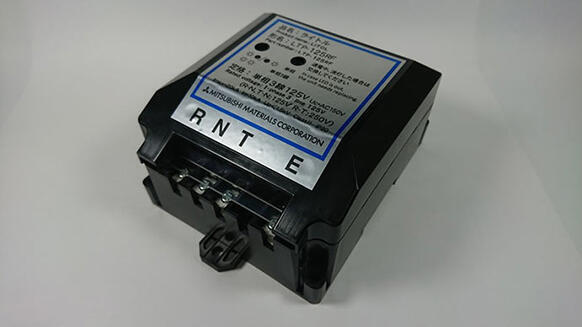

LTP-125RF

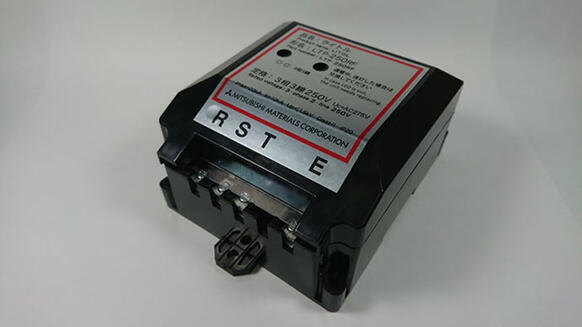

LTP-250RF

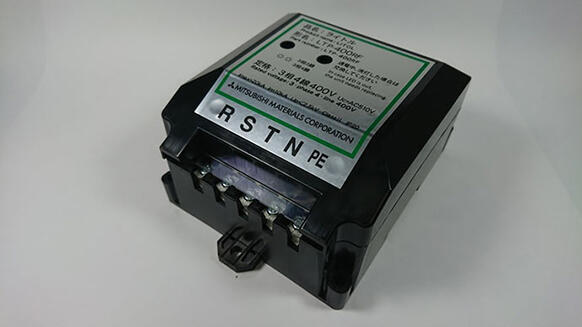

LTP-400RF
