Cemented carbide rotary die cutter (anvil roll)

Rotary die cutters are cutting tools used in hygiene and healthcare fields and are indispensable in the production of adhesive plasters and diapers.

The MMC RYOTEC CORPORATION rotary die cutter employs our unique technology to prolong the service life of blade edges. Increased accuracy can be obtained by using cutters with a high-accuracy/high-rigidity unit.

Machine ToolsIndustrial Machinery & Auxiliary Materials

Features

Rotary die cutters are cutting tools used in hygiene and healthcare fields and are indispensable in the production of adhesive plasters and diapers.
The MMC RYOTEC rotary die cutter speeds up the cutting line, increasing the efficiency of the highly efficient cutting process beyond what is achievable with a die and punch process.

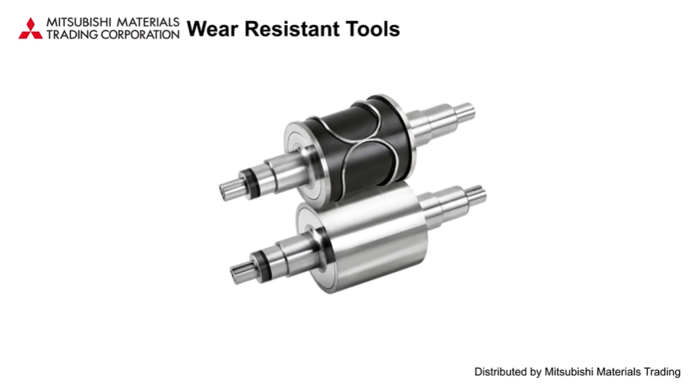

The combination of wear-resistant micro-fine cemented carbide (die cutter) and impact resistant cemented carbide (anvil roll) delivers high-quality cutting while maintaining durability and longevity.
Further, MMC RYOTEC CORPORATION offers incredibly precise and extremely reliable blade edges that are produced using our proprietary grinding technology and expertise in blade edge processing technology.

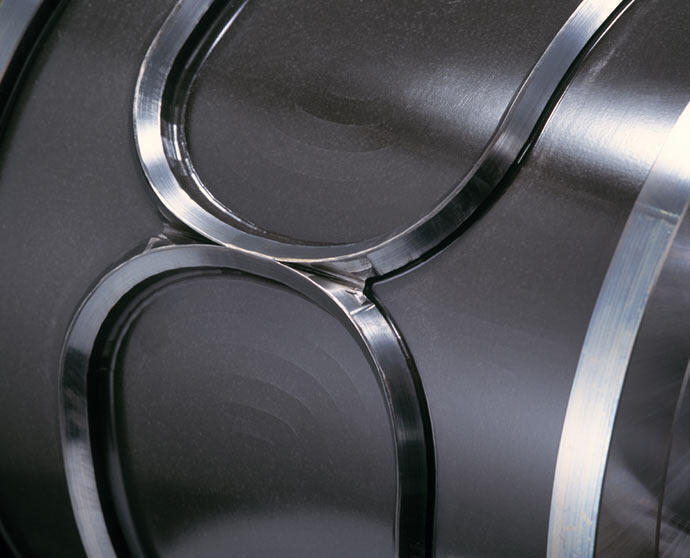

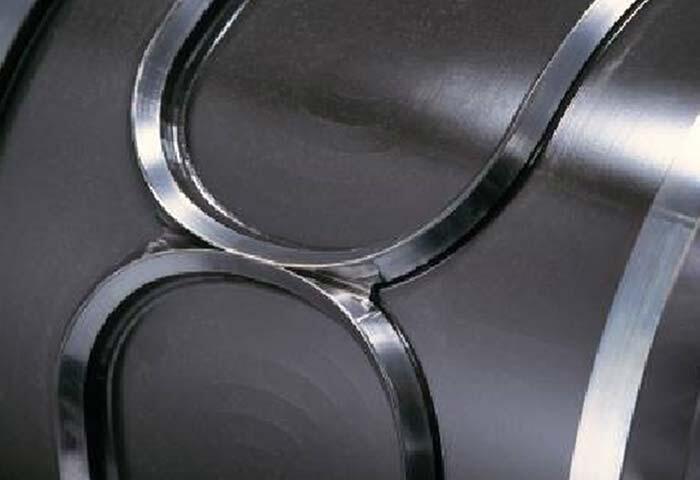

Carbide blade edge

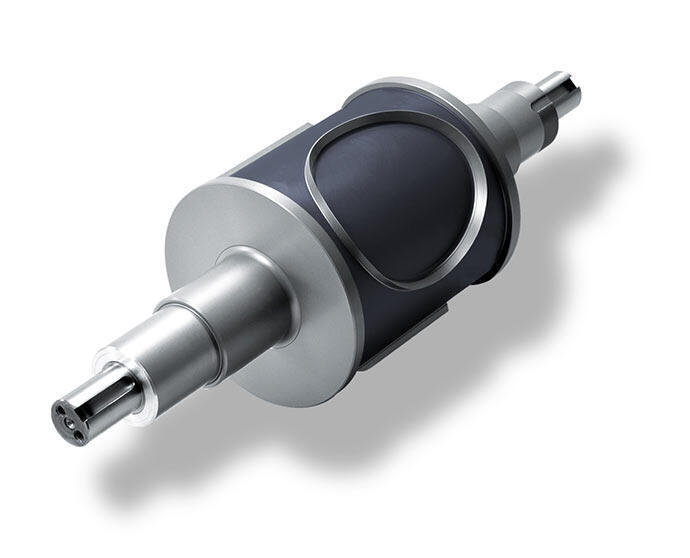

Rotary die

Applications

Applications include various products related to hygiene, healthcare, and clean energy.

  • Diapers
  • Sanitary napkins
  • Masks
  • Pet potty pads
  • Adhesive bandages
  • Various labels
  • Secondary cells
  • Fuel cells

Product Specifications/Summary

We are able to propose the best-suited carbide for the materials to be cut

  • Custom sizing
  • Max. carbide ring size: 390 mm O.D., 380 mm long
  • *Varies with proportionality of diameter and length.
  • Max. length (steel shaft length) : 1,600 mm
  • Max. weight (carbide ring + shaft) : 500 kg

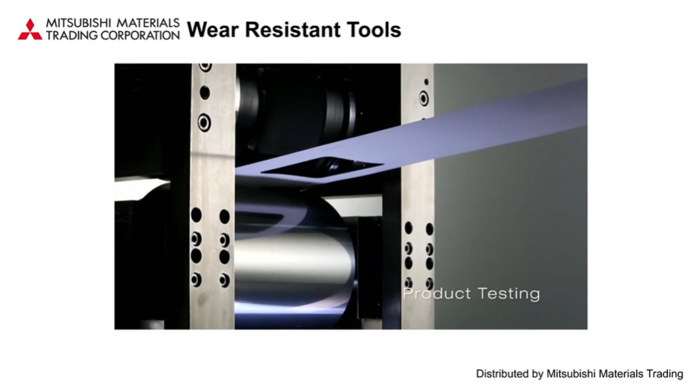

Stable cutting process using a high rigidity unit

The high-accuracy/high-rigidity unit is designed based on the CAE analysis of simulated load onto the unit. It delivers a stable cutting process and high reproducibility when changing over tools, and reduces loss during replacement.

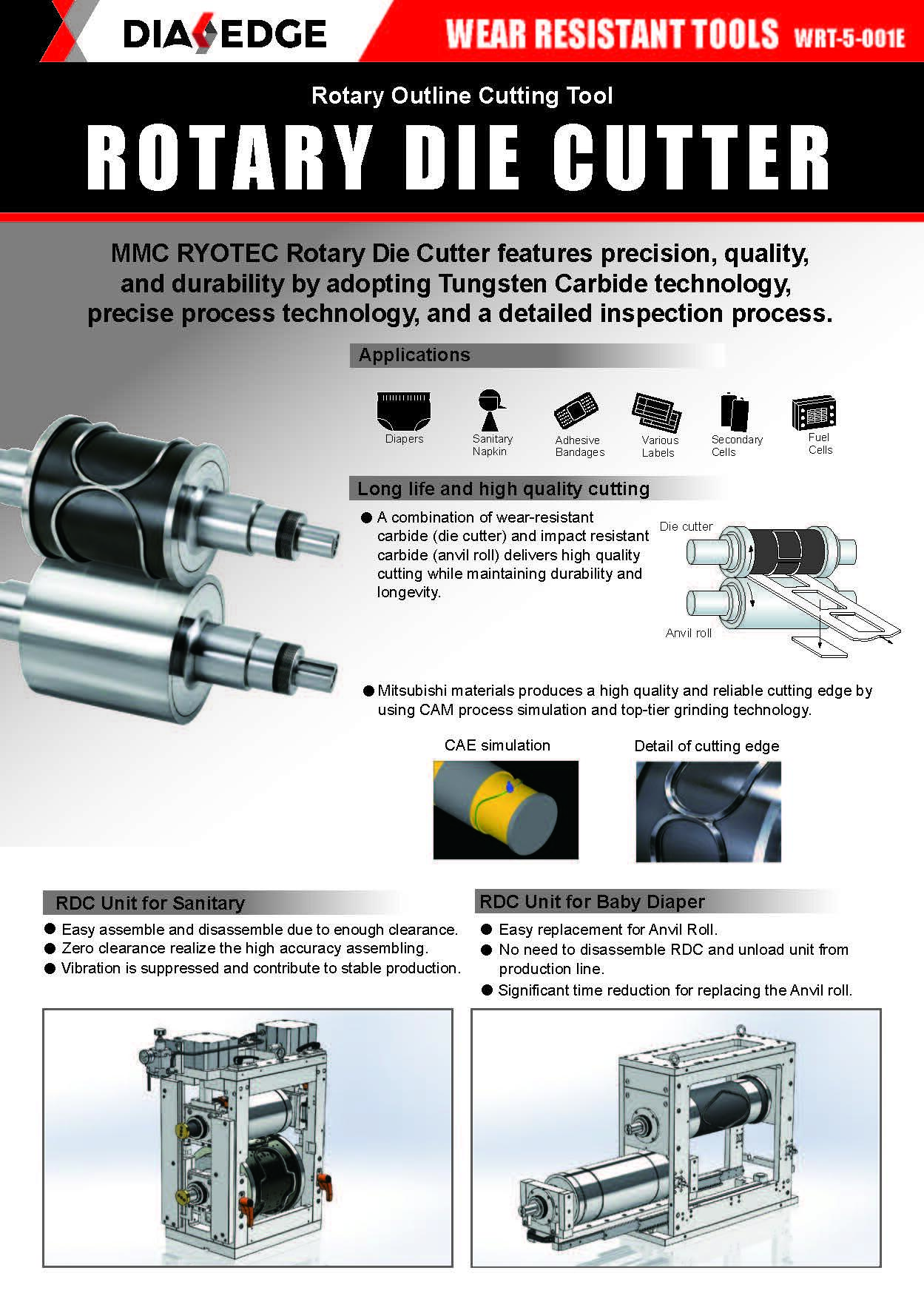

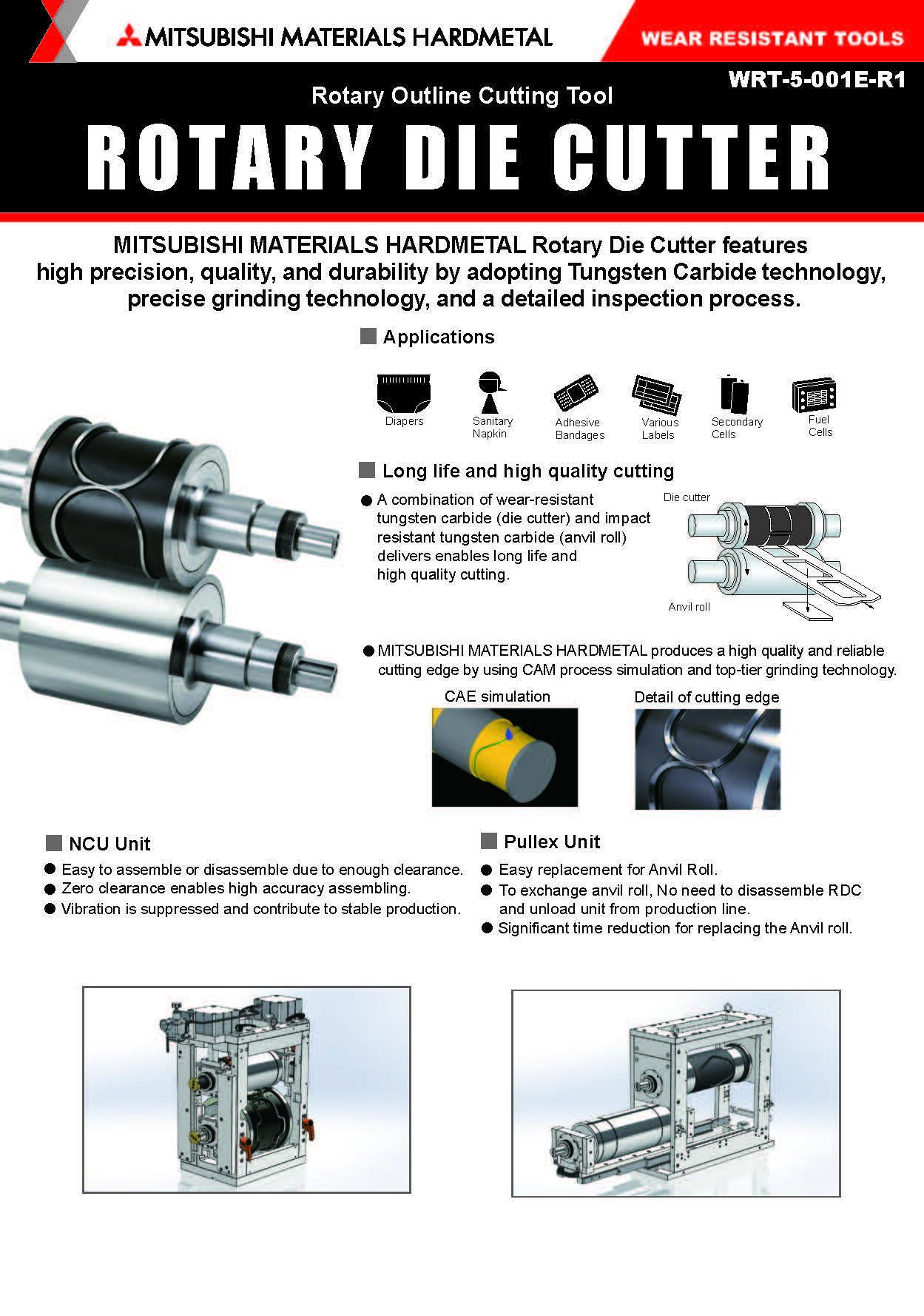

ROTARY DIE CUTTER
